Fitting Jet Ski Board Racks

Seperate makes & models require different clamp settings and install information

Fitment Clips

General fitment video including important note for Yamaha models

SeaDoo ST3 Hulls - 2018 onwards GTX155 GTX230 GTX300 & RXT300

SeaDoo 2020 GTI & GTR models - (Please note best way to identify these models is that they consist of a plastic hull)

SeaDoo RXP, GTR & GTI models PRIOR to 2019

SeaDoo Spark (all models)

Assembly Kit

Fitment graph guideline

SEADOO

Yamaha

Honda

Kawasaki

Fitment Instructions

Step 1.

First look for any pop rivets or bolts sitting on the inside of the gunwale/bumper channel holding the protective bumper rubber on, some models have them and some don’t. If pop rivets are found, make sure the clamp inner jaw (jaw with threaded studs) is not positioned on them as it will damage the inner jaw rubber pads. There is a gap between each inner jaw plate to compensate for any pop rivets or bolts.

'Yamaha' Gunnel Position

Step 2.

Hold the clamp with two hands applying pressure towards the ski to help it sit in position and to assist tightening the clamp and pull up on the shanks to lift the inner jaw into place inside the gunnel area.

Then use one hand to pull the inner jaw in. Proceed to tighten one knob up lightly till the clamp can hold itself.

Picture of how to hold and position your clamp

Step 3.

Make sure the rack posts are sitting near vertically straight, if not your adjustments or fitting may be wrong and can weaken the clamping strength, the adjustable bottom hull support plate with multiple holes in it dictates the angle the rack posts will be on.

Picture of posts sitting vertical

Step 4.

For Yamaha’s & Sea-Doos, make sure the upper hull support plate is sitting horizontally flush and neat in the edge between the gunnel rubber and fiberglass groove where the two meet. (Kawasaki and Honda are slightly different)

Step 5.

Double check that the inner jaw is sitting horizontally straight so it is parallel with the gunwale edge.

Step 6.

Proceed to tighten BOTH knobs at the SAME time with even tension until you have a nice secure, firm fitment. The amount of turns will vary between each make and model Jet Ski.

NOTE: Do not keep tightening till you can no longer tighten the knobs any more.

Step 7.

In the case you experience spray coming up from the rear rack, a splash guard comes with every set for the rear rack, screw into the plastic rack on the inner side with two screws.

Step 8.

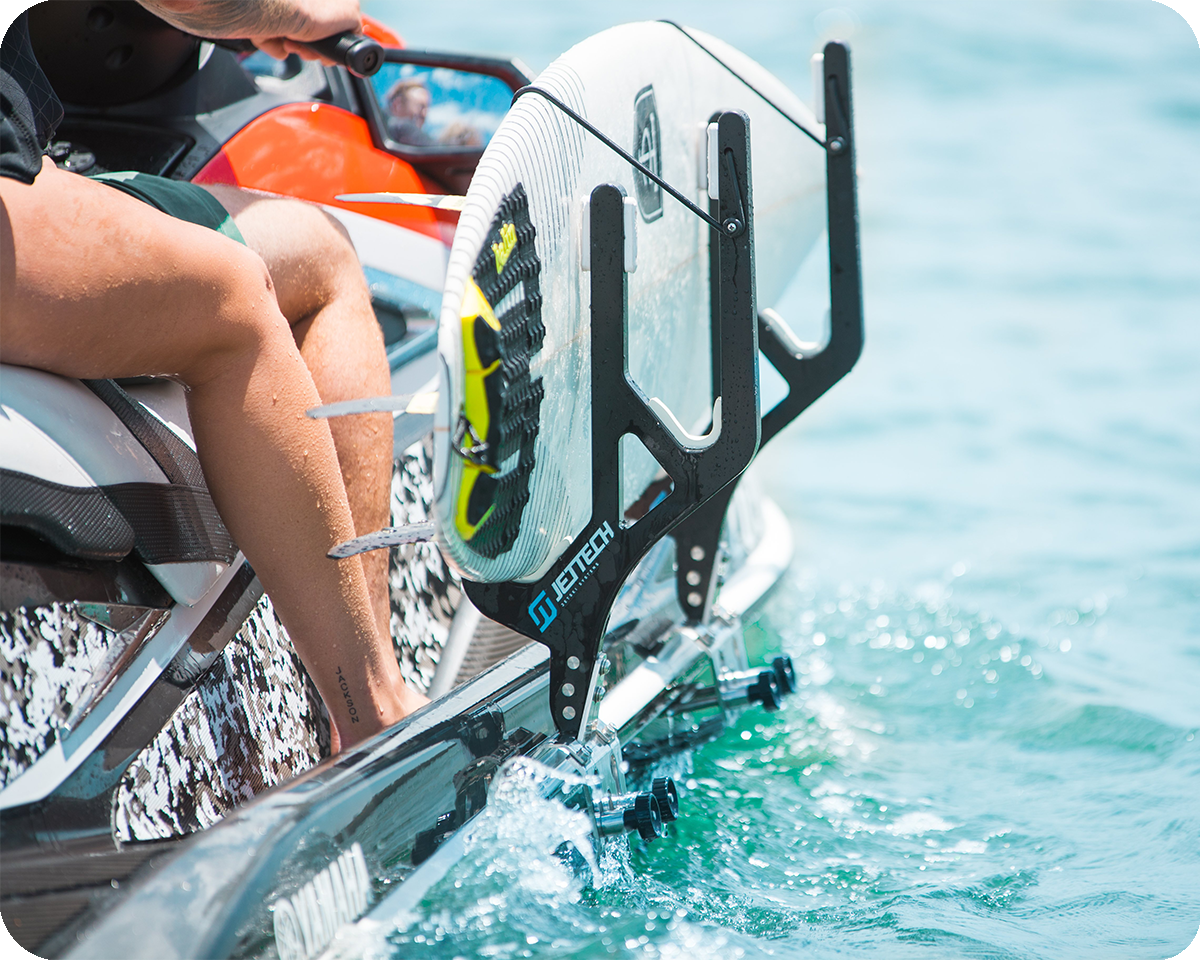

For a 6ft Surfboard space the racks approximately 60-80cm apart from each other sitting in the middle of the ski. The rack posts are shaped and profiled for surfboards to slot in with the top - waxed sides facing each other and fins at opposite ends. We suggest always putting the larger board in the bottom slot.

Always double check all the bolts after every few times of use to ensure they are tight, including the one underneath the plastic surf rack post.

Yamaha 2004-2012 FX & FZ model example

Yamaha FX 2012-2019 & All VX models

Sea Doo GTI 90,130, 155 & GTR 230, 215 & GTX 230 example

Honda R-12 & Honda F-12 example

Kawasaki Ultra 260, 300, 310 and STX-15F example

Sea Doo ST3 hull on 2018, 2019 GTX & RXT X models + Sea Doo Fish Pro

Sea Doo Spark

Jet Tech surfboard racks or known as a Jet Ski board carrier, Jet Ski surfboard rack, Jet Ski wakeboard rack, SUP or Paddleboard rack, Yamaha surfboard rack, Sea Doo surfboard rack, Yamaha wakeboard rack or Sea Doo wakeboard rack. Fits all models below, if you do not see your model the racks will still most likely fit. Please enquire.

To download a full copy of the above instructions, please click on the PDF icon below.
